Spiral Freezing Machine

Product Category:

Spiral Freezer

Spiral Freezing Machine Configuration
Structure	Double; Single
Drum diameter	1650-3900mm
Layers	7-25
Mesh belt width	520-1050mm
Infeed/Outfeed length	2000mm/1000mm
Refrigerant	Freon, Ammonia, CO2
Control panel	PLC
Defrosting method	Water/hot gas/ADF

Spiral Freezing Machine Configuration
Structure	Double; Single
Drum diameter	1650-3900mm
Layers	7-25
Mesh belt width	520-1050mm
Infeed/Outfeed length	2000mm/1000mm
Refrigerant	Freon, Ammonia, CO2
Control panel	PLC
Defrosting method	Water/hot gas/ADF

Product Detail

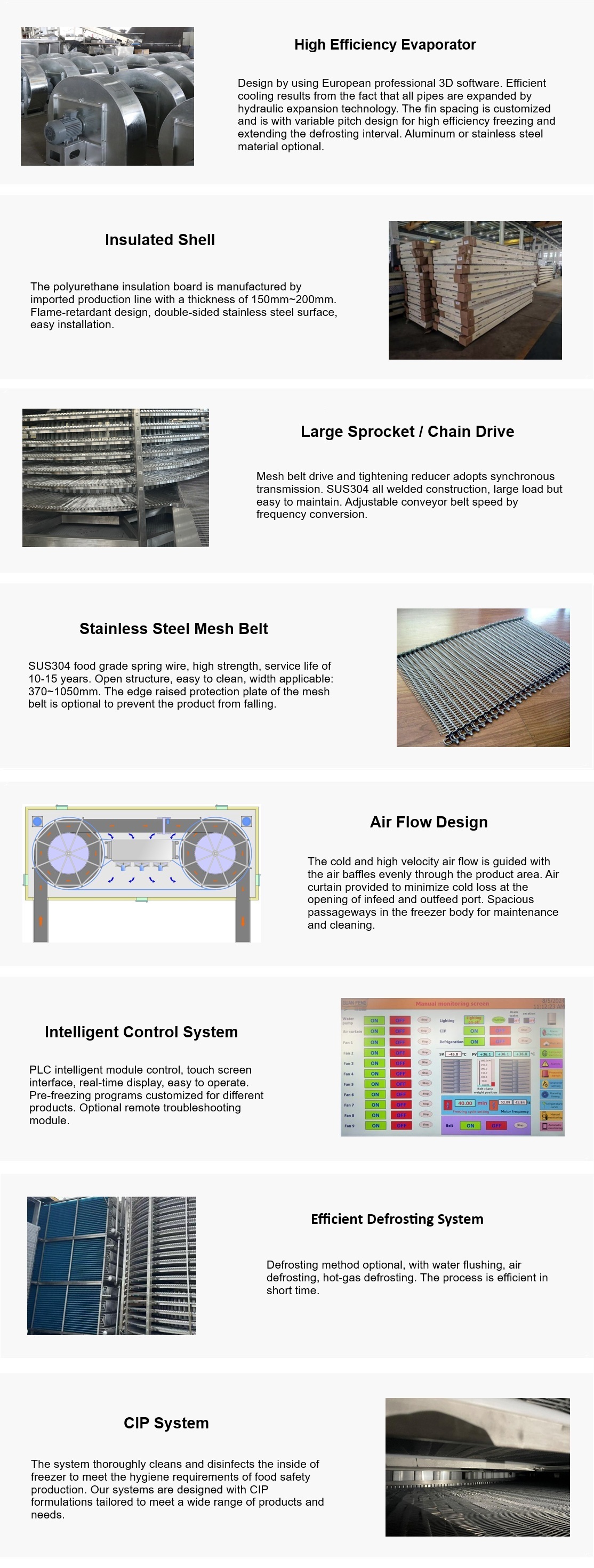

Product advantages
产品概要表格

Commodity name: Spiral Freezing Machine

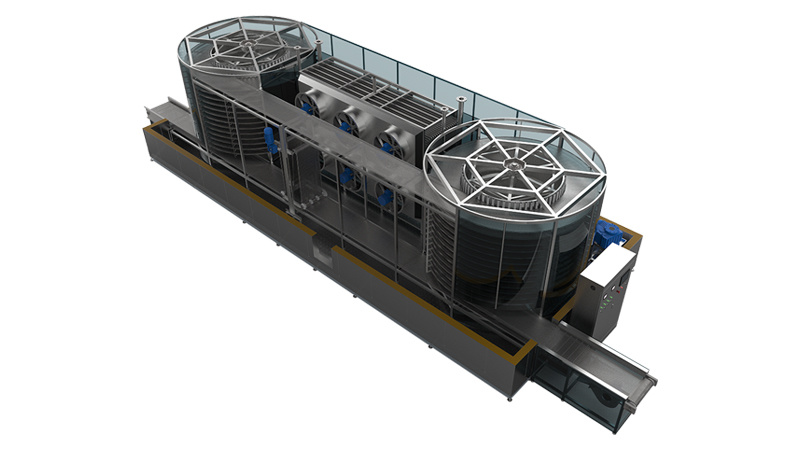

The spiral freezing machine produced by GUANFENBG Food Machinery is applicable for prepared food, ice cream, pasta, meat and poultry, aquatic products, fried food, small packaged food, and other vegetables which are unfavorable by IQF, which has became the most popular one in the food company.<br> Double spiral freezing machine positions infeed and outfeed at low making it convenient for operation and better matching the production lines of customers. Single spiral with different level of infeed and outfeed.

Spiral Freezing Machine Introduction：

The spiral freezer is an efficient and energy-saving high-speed freezing equipment, known for its compact design, wide application range and large freezing capacity. It is available in single and double helix configurations to meet different operational needs. It is applicable for prepared food, ice cream, pasta, meat and poultry, aquatic products, fried food, small packaged food, etc.

Spiral Freezing Machine Video：

Spiral Freezing Machine Parameter：

Model	GSL-500	GSL-1000	GSL-1500	GSL-2000	GSL-3000
Capacity（kg/h）	500	1000	1500	2000	3000
Overall dimensions(m)	12.94.52.92	15.04.83.37	16.05.23.67	17.65.44.27	19.56.14.27
Length of freezing room(m)	9.9	12.0	13.0	14.6	16.5
Inlet material temperature(℃)	+15
Outlet material temperature(℃)	-18
Freezing temperature(℃)	≤-33
Freezing time（min）	10-100（variable frequency regulation）
Refrigerant	R22/R404A/R717
Cold Consumption（kw）	95	165	245	325	490
Installation Power（kw）	21.1	31.0	38.5	45	60.0

Spiral Freezing Machine Configuration
Structure	Double; Single
Drum diameter	1650-3900mm
Layers	7-25
Mesh belt width	520-1050mm
Infeed/Outfeed length	2000mm/1000mm
Refrigerant	Freon, Ammonia, CO2
Control panel	PLC
Defrosting method	Water/hot gas/ADF
