Beef Freeze Dryer Machine
Product Category:
|
Beef Freeze Dryer Machine Configuration |
|
|
Processing time |
10~20h |
|
Heating medium |
Water,oil ,silicone |
|
Heating method |
Electric/Steam |
|
Refrigerant |
R404A/R507 |
|
Vacuum time |
<15min |
|
Cold trap temperature |
-30℃~-45℃ |
|
Control method |
PLC |
|
Defrosting method |
water/Automatic alternating defrosting |
|
Beef Freeze Dryer Machine Configuration |
|
|
Processing time |
10~20h |
|
Heating medium |
Water,oil ,silicone |
|
Heating method |
Electric/Steam |
|
Refrigerant |
R404A/R507 |
|
Vacuum time |
<15min |
|
Cold trap temperature |
-30℃~-45℃ |
|
Control method |
PLC |
|
Defrosting method |
water/Automatic alternating defrosting |
- Product Detail
- Product advantages
- 产品概要表格
-
- Commodity name: Beef Freeze Dryer Machine
Beef Lyophilization Machine uses freeze-drying technology to process beef and other meat products. It retains the original taste, flavor, and nutritional components of beef, extending the shelf life, and maintaining the product's shape and texture. It is widely used in the production of beef jerky, beef powder, and other deep-processed meat products.<br> GUANFENG specializes in crafting customized solutions, facilitating adjustments in size, shape, and layout methodologies to maximize workflow efficiency and productivity.
Beef Freeze Dryer Machine Introduction：

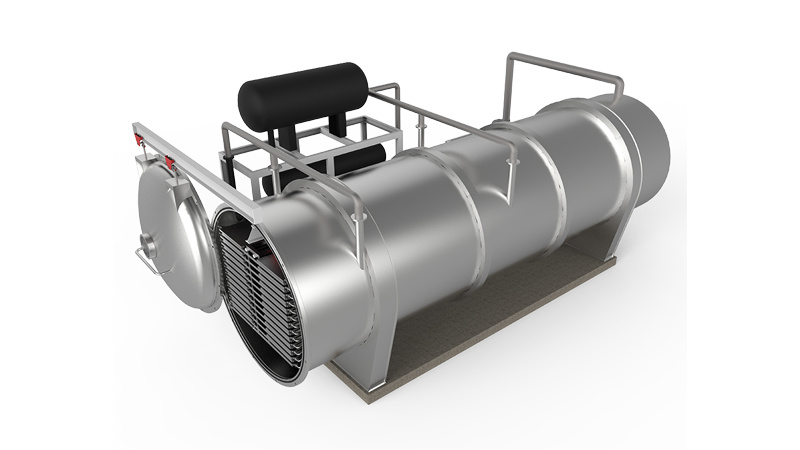

Beef freeze dryer is a cutting-edge equipment that extracts moisture under vacuum conditions to freeze dry products. The intelligent alternating use of three units ensures the continuous normal operation of the equipment, thereby achieving energy conservation and increasing the service life of the equipment. The precise control system of the beef freeze dryer allows for easy and accurate adjustment of temperature and pressure, enabling users to quickly and efficiently achieve the desired drying effect. Freeze drying is the process of dehydrating at temperatures as low as minus tens of degrees Celsius, ensuring the most complete preservation of nutritional components.
Beef Freeze Dryer Machine Video：
Beef Freeze Dryer Machine Parameter：
Model
GFD-5
GFD-10
GFD-25
GFD-50
GFD-100
GFD-125
GFD-150
GFD-200
Drying Area（㎡）
5
10
25
50
100
125
150
200
Average Dehydration（kg/h）
5
10
25
50
100
125
150
200
Number of Tray（pcs）
12
24
72
144
288
360
438
576
Size of Tray
780*540*30
540*645*30
Size of tank（m）
1.0*3.4
1.5*3.2
1.88*4.2
2.0*8.16
2.4*10.2
2.4*12
2.4*13.9
2.4*17.8
Operation Vacuum（Pa）
13.3~133Pa
Heating plate Temp.（℃）
Normal temperature ~ +120℃
Electric Heating（kw）
12
21
50
/
/
/
/
/
Steam Consumption（kg/h）
/
/
/
150
300
360
450
560
Cold Load Consumption（kw）
12
22
45
90
180
225
270
360
Installation Power（kw）
22
53
112
115
213
251
289
370
-
-
Beef Freeze Dryer Machine Configuration
Processing time
10~20h
Heating medium
Water,oil ,silicone
Heating method
Electric/Steam
Refrigerant
R404A/R507
Vacuum time
<15min
Cold trap temperature
-30℃~-45℃
Control method
PLC
Defrosting method
water/Automatic alternating defrosting
Hot Tags:
GUANFENG FOOD MACHINERY
Product
Applications
Variety Fruits & Vegetables
GUANFENG freeze dryers can preserve the natural color, flavor, and nutritional value of various fruits and vegetables, making them convenient for long - term storage and rehydration.
Meat Products
To remove moisture from meat products, extending their shelf life while maintaining the texture and taste, suitable for a wide range of meat types
Seafood Products
By gently removing water through freeze - drying, our equipment helps retain the delicate flavor and texture of seafood, making it a great option for seafood processing.
Ready Meals
The freeze dryers are capable of preserving complete ready meals, ensuring that the flavors and ingredients remain intact, ready for quick reconstitution
Beverages Products
Our equipment can transform liquid beverages into convenient, powdered forms, retaining their taste and aroma for easy storage and transportation.
