Tea Vacuum Freeze Drying Machine
Product Category:
|
Tea Freeze Drying Configuration |
|
|
Processing time |
10~20h |
|
Heating medium |
Water,oil ,silicone |
|
Heating method |
Electric/Steam |
|
Refrigerant |
R404A/R507 |
|
Vacuum time |
<15min |
|
Cold trap temperature |
-30℃~-45℃ |
|
Control method |
PLC |
|
Defrosting method |
water/Automatic alternating defrosting |
Preserve the delicate characteristics of tea with our specialized Tea Vacuum Freeze Drying Machine, designed to maintain the original flavor, color, and nutritional components of tea leaves. This advanced system addresses the challenges of short harvesting windows and delicate storage requirements by utilizing vacuum freeze-drying technology that processes tea through precise freezing, sublimation, and drying stages. The efficient Tea Vacuum Freeze Drying Machine ensures tea retains its essential qualities while significantly extending shelf life and simplifying transportation logistics. Tea processors benefit from the ability to preserve seasonal teas at their peak condition, allowing consumers to enjoy fresh-tasting tea year-round.
The technology behind this equipment focuses on quality preservation and operational efficiency. By carefully controlling the freeze-drying parameters, this reliable Tea Vacuum Freeze Drying Machine prevents the flavor degradation that typically occurs with conventional drying methods. The process creates a stable finished product that maintains its aromatic profile and visual appeal throughout storage and distribution. Tea manufacturers can confidently use this system to enhance their product offerings with premium freeze-dried teas that deliver consistent quality and superior sensory experience to discerning customers.
Preserve the delicate characteristics of tea with our specialized Tea Vacuum Freeze Drying Machine, designed to maintain the original flavor, color, and nutritional components of tea leaves. This advanced system addresses the challenges of short harvesting windows and delicate storage requirements by utilizing vacuum freeze-drying technology that processes tea through precise freezing, sublimation, and drying stages. The efficient Tea Vacuum Freeze Drying Machine ensures tea retains its essential qualities while significantly extending shelf life and simplifying transportation logistics. Tea processors benefit from the ability to preserve seasonal teas at their peak condition, allowing consumers to enjoy fresh-tasting tea year-round.
The technology behind this equipment focuses on quality preservation and operational efficiency. By carefully controlling the freeze-drying parameters, this reliable Tea Vacuum Freeze Drying Machine prevents the flavor degradation that typically occurs with conventional drying methods. The process creates a stable finished product that maintains its aromatic profile and visual appeal throughout storage and distribution. Tea manufacturers can confidently use this system to enhance their product offerings with premium freeze-dried teas that deliver consistent quality and superior sensory experience to discerning customers.
|
Tea Freeze Drying Configuration |
|
|
Processing time |
10~20h |
|
Heating medium |
Water,oil ,silicone |
|
Heating method |
Electric/Steam |
|
Refrigerant |
R404A/R507 |
|
Vacuum time |
<15min |
|
Cold trap temperature |
-30℃~-45℃ |
|
Control method |
PLC |
|
Defrosting method |
water/Automatic alternating defrosting |
- Product Detail
- Product advantages
- 产品概要表格
-
- Commodity name: Tea Vacuum Freeze Drying Machine
The Tea Extract Freeze Drying Machine is new technology equipment in the tea processing field. It's designed to handle tea extracts specifically. The machine is excellent at preserving the natural qualities of tea extracts, including their flavors and beneficial components. It's well - suited for large - scale production for tea extracts or other extracts, as it can process a significant amount of material. The freeze - dried tea extract produced by this machine is of high quality and has a long - lasting shelf - life, making it a valuable asset for the tea and related industries.
Tea Vacuum Freeze Drying Machine Introduction：
Tea vacuum freeze-drying machine is a food processing machinery equipment specifically designed for tea preservation. Due to the short picking time, difficulty in storage, and improper storage, tea can easily lose its original flavor. Tea vacuum freeze-drying machine uses vacuum freeze-drying technology to maintain the original flavor, color, and nutritional components of tea. Freezing, sublimation, and drying are a series of processes that extend the shelf life of tea leaves and facilitate storage and transportation.
Tea Vacuum Freeze Drying Machine Video：
Tea Vacuum Freeze Drying Machine Parameter：
Model
GFD-5
GFD-10
GFD-25
GFD-50
GFD-100
GFD-125
GFD-150
GFD-200
Drying Area（㎡）
5
10
25
50
100
125
150
200
Average Dehydration（kg/h）
5
10
25
50
100
125
150
200
Number of Tray（pcs）
12
24
72
144
288
360
438
576
Size of Tray
780*540*30
540*645*30
Size of tank（m）
1.0*3.4
1.5*3.2
1.88*4.2
2.0*8.16
2.4*10.2
2.4*12
2.4*13.9
2.4*17.8
Operation Vacuum（Pa）
13.3~133Pa
Heating plate Temp.（℃）
Normal temperature ~ +120℃
Electric Heating（kw）
12
21
50
/
/
/
/
/
Steam Consumption（kg/h）
/
/
/
150
300
360
450
560
Cold Load Consumption（kw）
12
22
45
90
180
225
270
360
Installation Power（kw）
22
53
112
115
213
251
289
370
-
Preserve the delicate characteristics of tea with our specialized Tea Vacuum Freeze Drying Machine, designed to maintain the original flavor, color, and nutritional components of tea leaves. This advanced system addresses the challenges of short harvesting windows and delicate storage requirements by utilizing vacuum freeze-drying technology that processes tea through precise freezing, sublimation, and drying stages. The efficient Tea Vacuum Freeze Drying Machine ensures tea retains its essential qualities while significantly extending shelf life and simplifying transportation logistics. Tea processors benefit from the ability to preserve seasonal teas at their peak condition, allowing consumers to enjoy fresh-tasting tea year-round.
The technology behind this equipment focuses on quality preservation and operational efficiency. By carefully controlling the freeze-drying parameters, this reliable Tea Vacuum Freeze Drying Machine prevents the flavor degradation that typically occurs with conventional drying methods. The process creates a stable finished product that maintains its aromatic profile and visual appeal throughout storage and distribution. Tea manufacturers can confidently use this system to enhance their product offerings with premium freeze-dried teas that deliver consistent quality and superior sensory experience to discerning customers.
-
Tea Freeze Drying Configuration
Processing time
10~20h
Heating medium
Water,oil ,silicone
Heating method
Electric/Steam
Refrigerant
R404A/R507
Vacuum time
<15min
Cold trap temperature
-30℃~-45℃
Control method
PLC
Defrosting method
water/Automatic alternating defrosting
GUANFENG FOOD MACHINERY
Product
Applications
Variety Fruits & Vegetables
GUANFENG freeze dryers can preserve the natural color, flavor, and nutritional value of various fruits and vegetables, making them convenient for long - term storage and rehydration.
Meat Products
To remove moisture from meat products, extending their shelf life while maintaining the texture and taste, suitable for a wide range of meat types
Seafood Products
By gently removing water through freeze - drying, our equipment helps retain the delicate flavor and texture of seafood, making it a great option for seafood processing.
Ready Meals
The freeze dryers are capable of preserving complete ready meals, ensuring that the flavors and ingredients remain intact, ready for quick reconstitution
Beverages Products
Our equipment can transform liquid beverages into convenient, powdered forms, retaining their taste and aroma for easy storage and transportation.
GUANFENG FOOD MACHINERY
Product
Recommendation

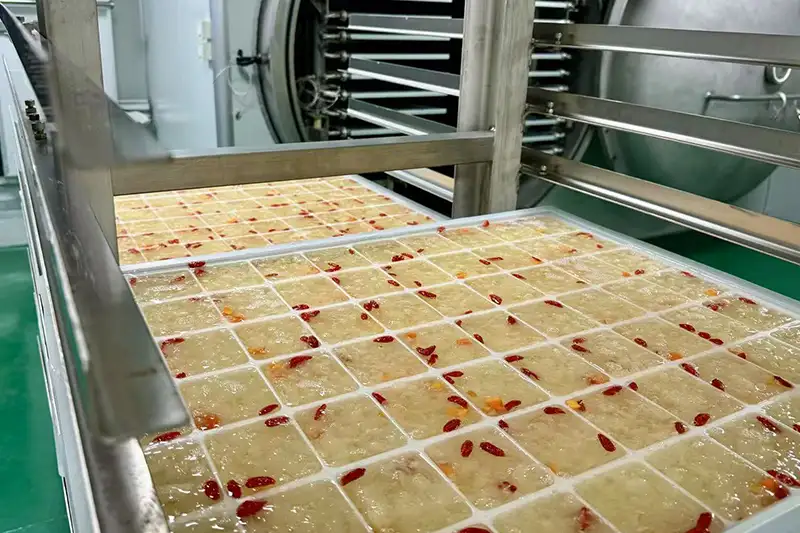

Tremella Soup Freeze Drying Machine
