Conveyor Mesh Belt Dryer

Product Category:

Belt Dryer

Automated Operation: Operates seamlessly with minimal human intervention, ensuring a streamlined and efficient drying process.
Continuous Belt System: Featuring a continuous belt conveyor, the machine gently moves potatoes through the drying chamber, ensuring even exposure to heat and airflow.
Adjustable Temperature and Airflow: The drying conditions, including temperature and airflow, can be precisely adjusted to suit different types of products.
Customization: With working program and process parameters storage memory and printing function (according to customer requirements).

Automated Operation: Operates seamlessly with minimal human intervention, ensuring a streamlined and efficient drying process.
Continuous Belt System: Featuring a continuous belt conveyor, the machine gently moves potatoes through the drying chamber, ensuring even exposure to heat and airflow.
Adjustable Temperature and Airflow: The drying conditions, including temperature and airflow, can be precisely adjusted to suit different types of products.
Customization: With working program and process parameters storage memory and printing function (according to customer requirements).

Product Detail
Product advantages
产品概要表格

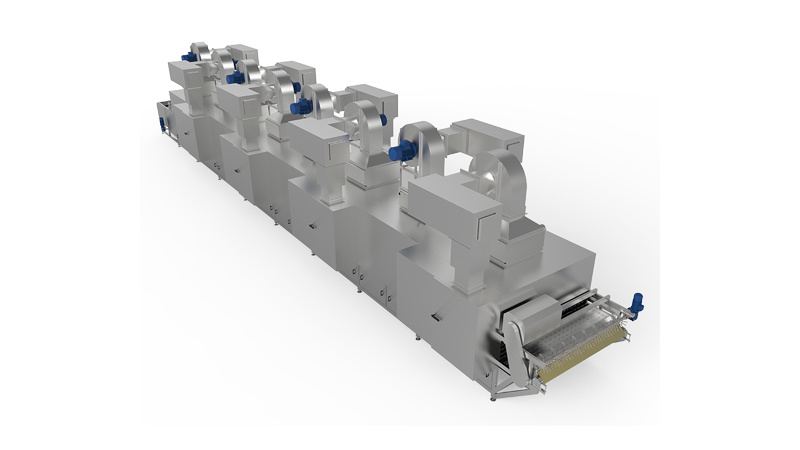

Commodity name: Conveyor Mesh Belt Dryer

Conveyor mesh belt dryer is a continuous production drying equipment, especially suitable for drying sheet, strip and granular materials with good air permeability.<br> This innovative technology integrates automation and advanced drying principles to deliver consistent, high-quality results, enhancing the overall processing efficiency and product shelf life.

With years of expertise in industrial drying solutions, our Conveyor Mesh Belt Dryer is designed to provide efficient, uniform, and energy-saving drying for a wide range of materials, including food, chemicals, pharmaceuticals, and biomass. Our system integrates advanced airflow control, precise temperature management, and multi-layer mesh belt design, ensuring optimal drying performance while preserving product quality.

Through continuous technological innovation, we have enhanced the efficiency of our dryers with customizable drying zones, intelligent moisture control, and energy-efficient heat recovery systems. The modular design allows for flexibility in processing different materials, while the stainless steel construction ensures durability and hygiene compliance. Our commitment to high-performance engineering and industry-driven solutions has made us a trusted partner for manufacturers worldwide.

FAQs

1. What are the advantages of a Conveyor Mesh Belt Dryer over traditional drying methods?
A Conveyor Mesh Belt Dryer provides continuous, automated drying with precise temperature and airflow control, ensuring uniform drying results while increasing production efficiency.

2. How does your Conveyor Mesh Belt Dryer improve energy efficiency?
Our dryers incorporate heat recovery systems, optimized airflow distribution, and smart temperature control, reducing energy consumption while maintaining consistent drying performance.

3. What types of materials can be processed using a Conveyor Mesh Belt Dryer?
Our Conveyor Mesh Belt Dryers are ideal for drying fruits, vegetables, herbs, grains, tea leaves, biomass, chemical powders, and pharmaceutical products, ensuring high-quality and uniform moisture removal.

Model Parameters	GBJ-16	GBJ-24	GBJ-32
Dimensions (mm)	10860(9860)x3160x3600	14860(13860)x3160x3600	18860(17860)x3160x3600
Effective drying area (m²)	16	24	32
Processing capacity（kg/h）	600~800	1000~1200	1400~1600
Belt center width(mm)	2000	2000	2000
Heating method	Heating by steam (the steam boiler is provided separately)
Steam pressure requirement	0.5 ~ 0.8 Mpa
Steam Consumption（kg/h）	200~500	300~750	500~1000
Installation Power（kw）	33.75	48.75	64.50

High efficient thermal processing

Carrot Vegetable Belt Dryer use independent temperature zones to customize the thermal process and maximized the efficiency of heat/mass transfer. As the product moves through the separate processing zones, it's exposed to controlled airflow and temperature conditions. Precise control of airflow volume, temperature, and humidity enables the development or preservation of product characteristics while keeping operating efficiency high and utility costs low. The intersection air duct structure provides the ultimate in moisture uniformity with consistent airflow delivery to both sides of the product.

High standard sanitary and safety design

Carrot Vegetable Belt Dryer can fulfill a highly strict sanitary and safety standards for food and other industries. Through improvement for the detailed design, it have superior access for cleaning and maintenance. Dryer floors are pitched for easy cleaning. There are cleaning brush both on the infeed and outlet for continuous cleaning of the conveyor belt. The sanitary doors are all made by double-layer insulated door panels to prevent moisture from entering the panel. Interior surfaces of the dryer are sloped and smooth to allow the product to flow without becoming a safety or sanitation risk. Easy access via large doors and removable panels allows cleaning to be done quickly and thoroughly during routine operations.

- Automated Operation: Operates seamlessly with minimal human intervention, ensuring a streamlined and efficient drying process.
- Continuous Belt System: Featuring a continuous belt conveyor, the machine gently moves potatoes through the drying chamber, ensuring even exposure to heat and airflow.
- Adjustable Temperature and Airflow: The drying conditions, including temperature and airflow, can be precisely adjusted to suit different types of products.
- Customization: With working program and process parameters storage memory and printing function (according to customer requirements).
