GUANFENG FOOD MACHINERY

main products include freeze-drying, drying, quick freezing, deep frying, pre-treatment, liquid nitrogen freezing, sterilization, cold chain storage and other food machinery equipment

Box dryer
Box dryer
Box dryer
Box dryer
+
  • Box dryer
  • Box dryer
  • Box dryer
  • Box dryer

Box dryer

Product Category:

  • Customized solutions to meet different requirement.
  • Multiple models with capacity range from 5kg/batch to 2500kg/batch.
  • Cold traps position optional: rear-mounted, side-mounted and top-mounted to cater factory design.
  • Continuous alternate automatic defrosting technology adopted for medium and large size models.
  • Remote control with multiple devices including mobile devices.



  • Customized solutions to meet different requirement.
  • Multiple models with capacity range from 5kg/batch to 2500kg/batch.
  • Cold traps position optional: rear-mounted, side-mounted and top-mounted to cater factory design.
  • Continuous alternate automatic defrosting technology adopted for medium and large size models.
  • Remote control with multiple devices including mobile devices.



  • Product Detail
  • Product advantages
  • 产品概要表格
    • Commodity name: Box dryer

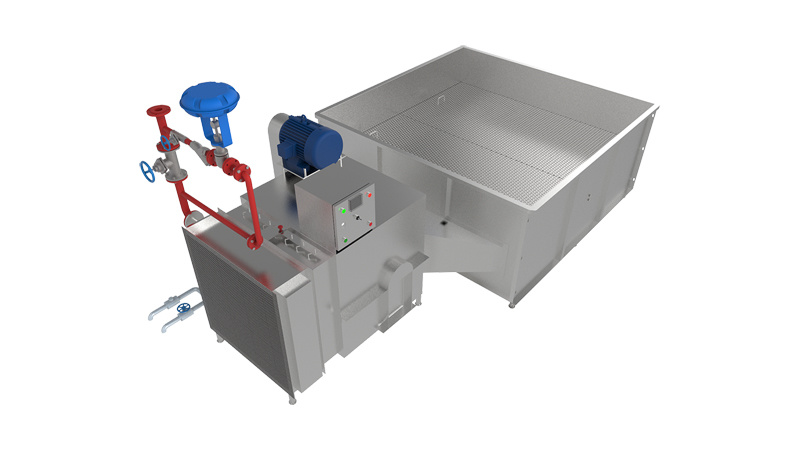

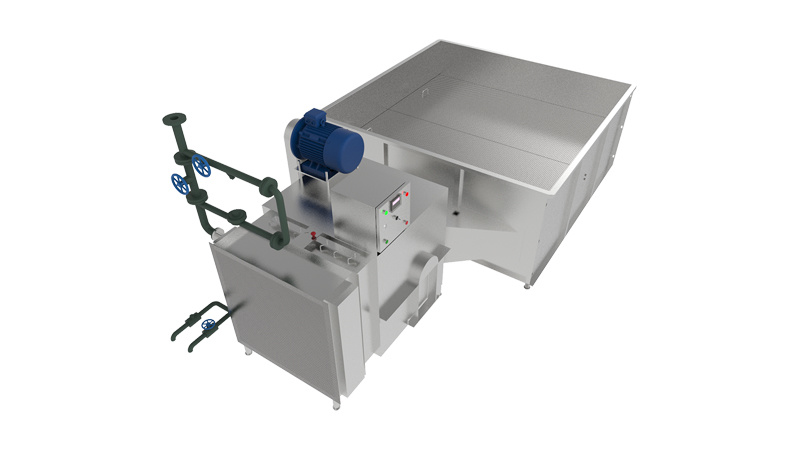

    The working principle of the GTJ series Box Dryer Machine is as follows: the normal temperature air is adopted. After passing through the heat exchanger, it is changed into the high temperature dried hot air. Under the function of fan, the hot air and materials carry out heat exchange to achieve to dry.<br> It is especially suitable for products containing sugar or viscous products,such as sugared carrot, cabbage, kelp laver and etc. In addition,the hygienic condition is good, which makes it be easily cleaned and maintained.The parts contacting foods are made of stainless steel, which fully complies with hygienic requirements for exports.

    Introduction to the GTJ Series Box Drying Machine

    The GTJ Series Box Drying Machine is a state-of-the-art industrial drying solution designed specifically for processing heat-sensitive, sugar-rich, and viscous food products. Combining efficiency, hygiene, and versatility, this machine is ideal for drying foods like sugared carrots, cabbage, kelp, laver (seaweed), and other sticky or high-sugar-content materials. Engineered with stainless steel food-contact surfaces and advanced drying technology, the GTJ Series ensures compliance with international hygiene standards, making it a preferred choice for export-oriented food manufacturers.



    Model Parameters

    GTJ-I

    GTJ-II

    Overall Dimensions (mm)

    Length

    3600

    3600

    Width

    2000

    2000

    Height

    1590

    1590

    Blower Fan

    Blast volume(m³/h)

    9650

    12600

    Blast pressure(pa)

    774

    870

    Power(kw)

    4

    5.5

    Qty(pi)

    1

    1

    Steam consumption(kg/h)

    100

    120

    Drying area(㎡)

    4

    4

    Drying capacity(KG H20/H)

    50

    70

    Frequently Asked Questions (FAQs)

    1. Can the GTJ Series handle sticky or high-sugar foods without clogging?
    Yes! The GTJ Series is specifically designed for viscous and sugar-rich products. Its stainless steel trays and optimized airflow prevent sticking and ensure even drying.

    2. How does the automatic defrosting technology work?
    Medium and large models use continuous alternate defrosting, which cycles between drying and defrosting modes to maintain efficiency without manual intervention.

    3. Is the GTJ Series suitable for export-oriented production?
    Absolutely. With CE certification and stainless steel food-contact surfaces, the GTJ Series complies with global hygiene and safety standards.

    4. Can I request a customized configuration?
    Yes. The GTJ Series supports customized solutions, including cold trap positioning, remote control integration, and capacity adjustments. Contact suppliers for a Belt Dryer quotation tailored to your needs.

    5. What is the price range for the GTJ Series?
    Prices vary based on capacity and features. Explore Belt Dryer pricelist options from Chinese Belt Dryer manufacturers for competitive rates.


    Why Choose the GTJ Series?

    The GTJ Series Box Drying Machine is the best Box Drying Machine for food processors prioritizing hygiene, efficiency, and adaptability. Whether you need a cheap Box Drying Machine for small batches or a durable Box Drying Machine for industrial-scale production, the GTJ Series delivers unmatched performance.

    Looking to buy Box Drying Machine equipment? Partner with trusted Belt Dryer suppliers in China offering in stock Box Drying Machine units and reliable after-sales support. With Belt Dryer manufacturers China leading the market, you can source advanced Box Drying Machines tailored to your production goals.



    • Customized solutions to meet different requirement.
    • Multiple models with capacity range from 5kg/batch to 2500kg/batch.
    • Cold traps position optional: rear-mounted, side-mounted and top-mounted to cater factory design.
    • Continuous alternate automatic defrosting technology adopted for medium and large size models.
    • Remote control with multiple devices including mobile devices.
