Belt Dryer

Product Category:

Belt Dryer

Belt Dryer Configuration
Mesh belt width	2000mm(stainless steel)
Conveying speed	Frequency control
Heating method	Steam
Steam consumption	600-1600kg/h（0.5~0.8MPa）
Heat preservation layer	δ40mm thick aluminium silicate
Number of heating system	Depends on different capacity
Temperature control	Separated and automatic temperature
Control panel	PLC

Belt Dryer Configuration
Mesh belt width	2000mm(stainless steel)
Conveying speed	Frequency control
Heating method	Steam
Steam consumption	600-1600kg/h（0.5~0.8MPa）
Heat preservation layer	δ40mm thick aluminium silicate
Number of heating system	Depends on different capacity
Temperature control	Separated and automatic temperature
Control panel	PLC

Product Detail
Product advantages
产品概要表格

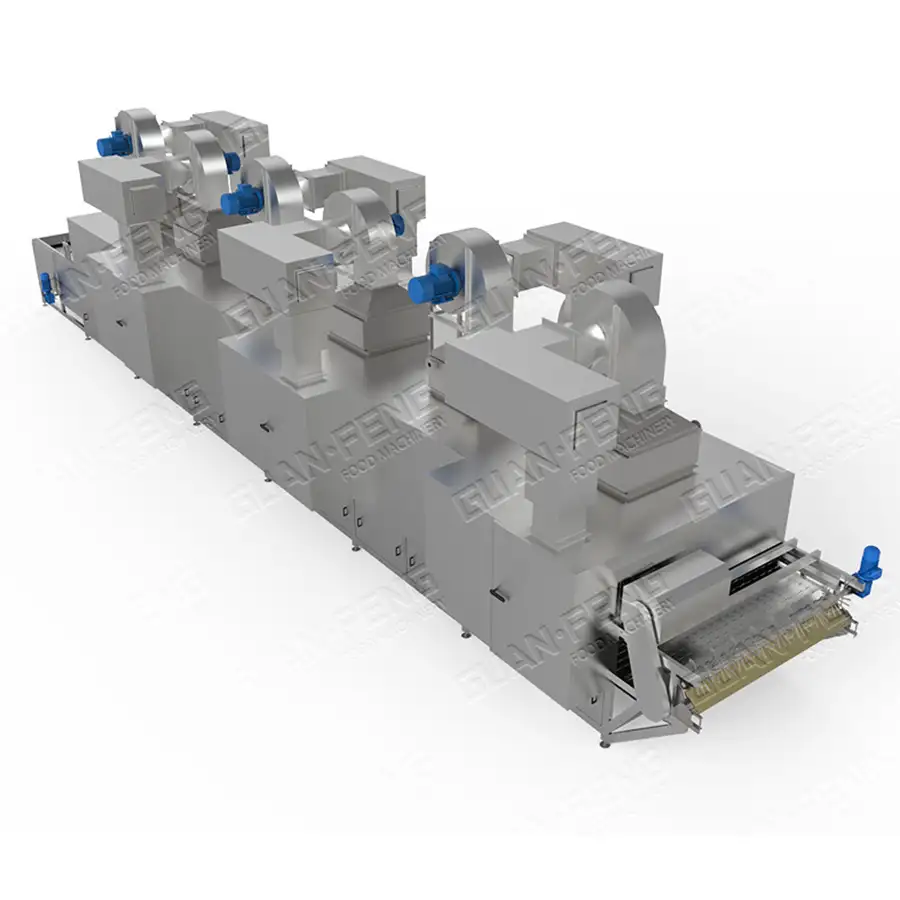

Commodity name: Belt Dryer

Belt dryer is a continuous flow drying equipment, especially suitable for drying sheet, strip and granular materials with good air permeability.<br> This innovative technology integrates automation and advanced drying principles to deliver consistent, high-quality results, enhancing the overall processing efficiency and product shelf life.

Belt Dryer Introduction：

Belt dryer is a continuous drying equipment that utilizes a automatic moving conveyor belt to transport wet materials through a heated chamber. It ensures uniform drying by evenly distributing the materials on the belt. It is especially suitable for drying sheet, strip and granular materials with good air permeability.

Belt Dryer Video：

Belt Dryer Parameter：

Model	GBJ-16	GBJ-24	GBJ-32
Dimensions (mm)	10860(9860)x3160x3600	14860(13860)x3160x3600	18860(17860)x3160x3600
Effective drying area (m2)	16	24	32
Processing capacity（kg/h）	600~800	1000~1200	1400~1600
Belt center width(mm)	2000	2000	2000
Heating method	Heating by steam (the steam boiler is provided separately)
Steam pressure requirement	0.5 ~ 0.8 Mpa
Steam Consumption（kg/h）	200~500	300~750	500~1000
Installation Power（kw）	33.75	48.75	64.50

Belt Dryer Configuration
Mesh belt width	2000mm(stainless steel)
Conveying speed	Frequency control
Heating method	Steam
Steam consumption	600-1600kg/h（0.5~0.8MPa）
Heat preservation layer	δ40mm thick aluminium silicate
Number of heating system	Depends on different capacity
Temperature control	Separated and automatic temperature
Control panel	PLC
