Vacuum Freeze Dryer
Product Category:
|
Processing time |
10~20h |
|
Heating medium |
Water,oil ,silicone |
|
Heating method |
Electric/Steam |
|
Refrigerant |
R404A/R507 |
|
Vacuum time |
<15min |
|
Cold trap temperature |
-30℃~-45℃ |
|
Control method |
PLC |
|
Defrosting method |
water/Automatic alternating defrosting |
|
Processing time |
10~20h |
|
Heating medium |
Water,oil ,silicone |
|
Heating method |
Electric/Steam |
|
Refrigerant |
R404A/R507 |
|
Vacuum time |
<15min |
|
Cold trap temperature |
-30℃~-45℃ |
|
Control method |
PLC |
|
Defrosting method |
water/Automatic alternating defrosting |
- Product Detail
- Product advantages
- 产品概要表格
-
- Commodity name: Vacuum Freeze Dryer
Processing time：10-20h</br> Vacuum time：<15 minutes</br> Refrigerant：R404A/R507</br> Cold trap working temperature：-30℃~-45℃</br> Control method：PLC</br> Heating method：Electric/Steam</br> Heating medium：Water，oil， silicone</br> Defrosting method：water defrosting/Automatic alternating defrosting </br>
Vacuum Freeze Dryer Introduction：

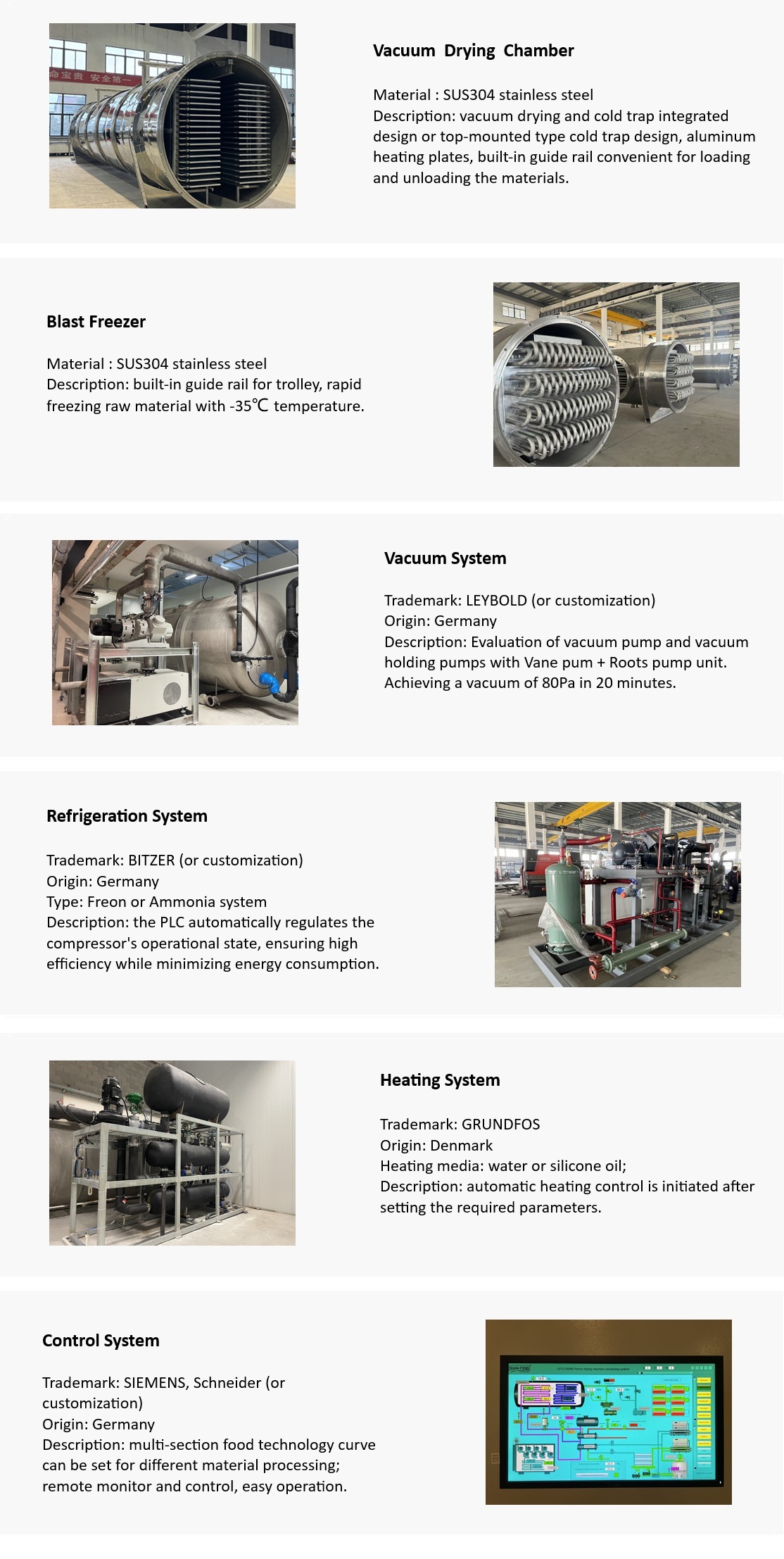

The vacuum freeze dryer freezes the material at a low temperature and then removes moisture through sublimation under vacuum conditions. It is mainly composed of refrigeration system, vacuum system, heating system and control system. Each system works in coordination to dry materials efficiently and maintain their chemical and biological properties.
Vacuum Freeze Dryer Video：
Vacuum Freeze Dryer Parameter：Model
GFD-5
GFD-10
GFD-25
GFD-50
GFD-100
GFD-125
GFD-150
GFD-200
Drying Area（㎡）
5
10
25
50
100
125
150
200
Average Dehydration（kg/h）
5
10
25
50
100
125
150
200
Number of Tray（pcs）
12
24
72
144
288
360
438
576
Size of Tray
780*540*30
540*645*30
Size of tank（m）
1.0*3.4
1.5*3.2
1.88*4.2
2.0*8.16
2.4*10.2
2.4*12
2.4*13.9
2.4*17.8
Operation Vacuum（Pa）
13.3~133Pa
Heating plate Temp.（℃）
Normal temperature ~ +120℃
Electric Heating（kw）
12
21
50
/
/
/
/
/
Steam Consumption（kg/h）
/
/
/
150
300
360
450
560
Cold Load Consumption（kw）
12
22
45
90
180
225
270
360
Installation Power（kw）
22
53
112
115
213
251
289
370
-
-
Processing time
10~20h
Heating medium
Water,oil ,silicone
Heating method
Electric/Steam
Refrigerant
R404A/R507
Vacuum time
<15min
Cold trap temperature
-30℃~-45℃
Control method
PLC
Defrosting method
water/Automatic alternating defrosting
GUANFENG FOOD MACHINERY
Product
Applications
Variety Fruits & Vegetables
GUANFENG freeze dryers can preserve the natural color, flavor, and nutritional value of various fruits and vegetables, making them convenient for long - term storage and rehydration.
Meat Products
To remove moisture from meat products, extending their shelf life while maintaining the texture and taste, suitable for a wide range of meat types
Seafood Products
By gently removing water through freeze - drying, our equipment helps retain the delicate flavor and texture of seafood, making it a great option for seafood processing.
Ready Meals
The freeze dryers are capable of preserving complete ready meals, ensuring that the flavors and ingredients remain intact, ready for quick reconstitution
Beverages Products
Our equipment can transform liquid beverages into convenient, powdered forms, retaining their taste and aroma for easy storage and transportation.
Candy Products
Vacuum freeze dryer revolutionizes candy production. It creates a unique texture in candies, such as a light and crispy feel, enhancing the overall consumer experience
Chinese Herbs
Heat pump dryer is used for drying Chinese herbs. Heat pump dryer can precisely control the drying conditions to meet the special requirements of the pharmaceutical industry, while reducing energy consumption and emissions, in line with the green development trend of the pharmaceutical industry.
Bakery Products
The spiral freezer can freeze the raw bread dough, pizza dough, croissant, baked bread, buns. It can quickly lock the water and nutrition of food, maintain its original taste and flavor.
Poultry Products(cooked)
Our spiral freezers are also popular and efficient in freezing the fried chicken nuggets for major fast food chains.
Ice Cream
Ice cream needs to be frozen quickly to maintain taste and quality, and spiral freezer can provide a stable low temperature environment to ensure that ice cream is frozen quickly and evenly.
